Broadband acoustic panel, 2 x 4 ft, Guilford of Maine Anchorage in White

Broadband Acoustic Panel

2 x 4' / White / Wall Mount Kit - Z Bar Cleats
$229.00
Skip to product information

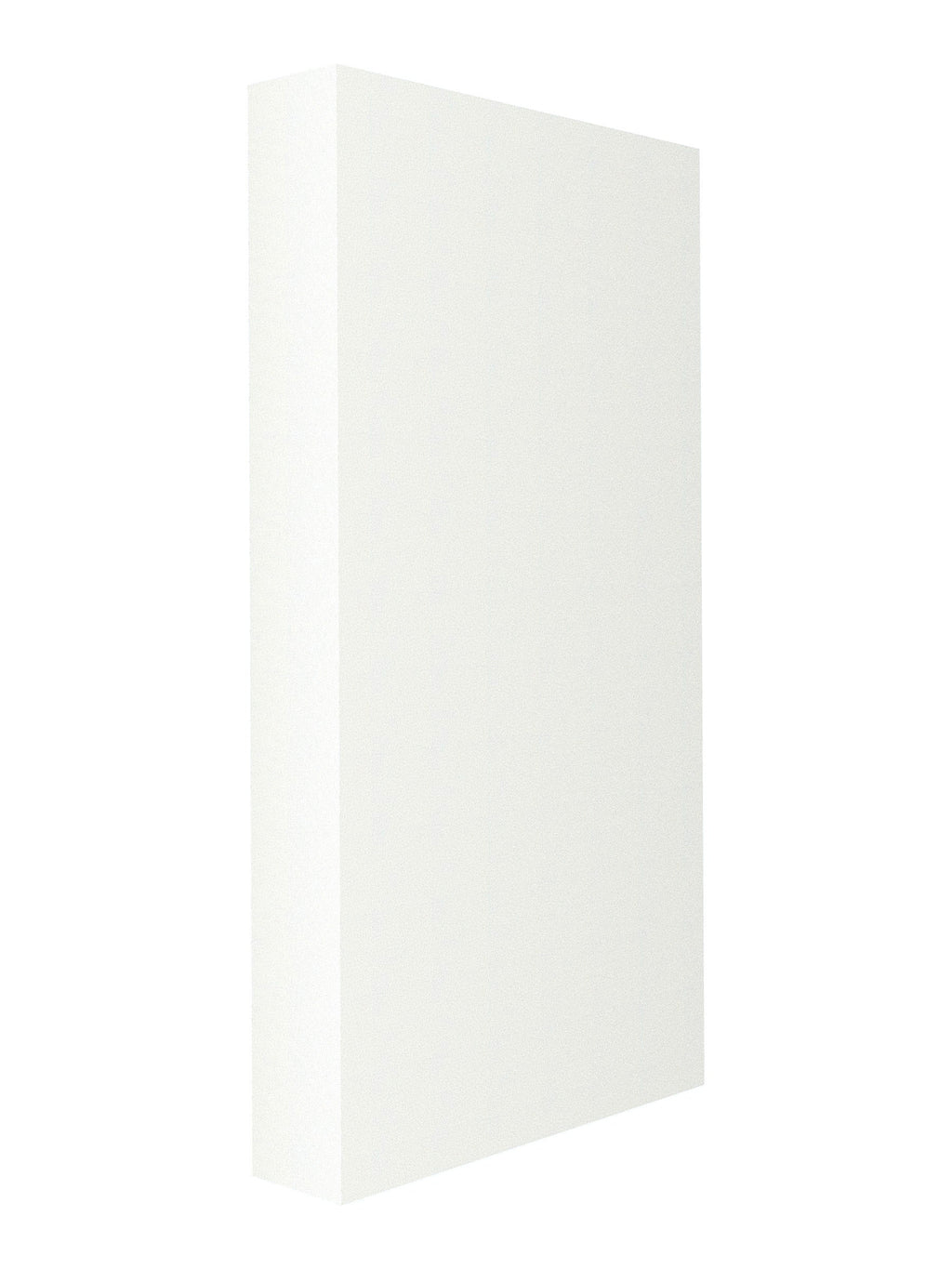

Broadband acoustic panel, 2 x 4 ft, Guilford of Maine Anchorage in White
  • Broadband acoustic panel, 2 x 4 ft, Guilford of Maine Anchorage in White

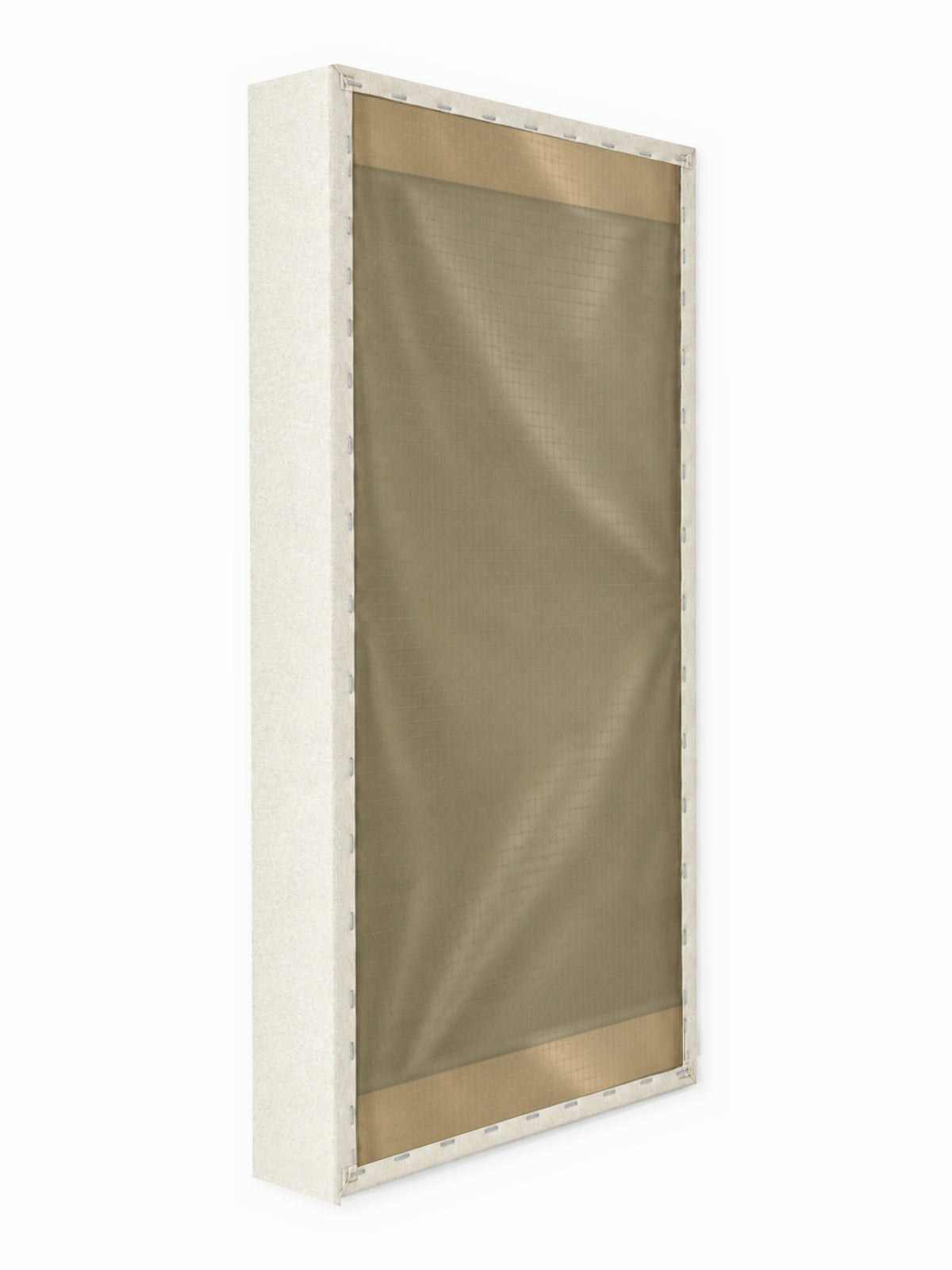

  • Broadband acoustic panel, 2 x 4 ft, rear view: olive ripstop backing with cross members behind it

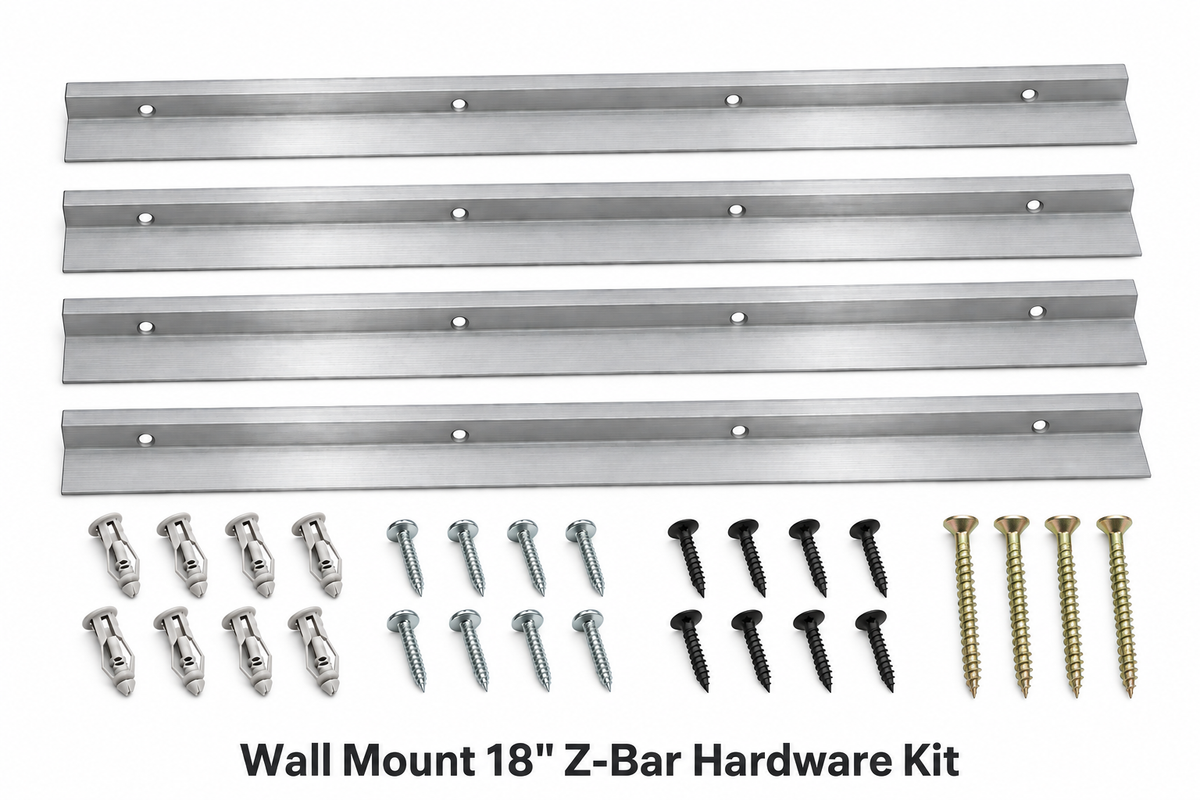

  • Wall mount Z-bar hardware kit: four 18 inch aluminum Z-bar cleats, drywall anchors, screws and wood screws for studs

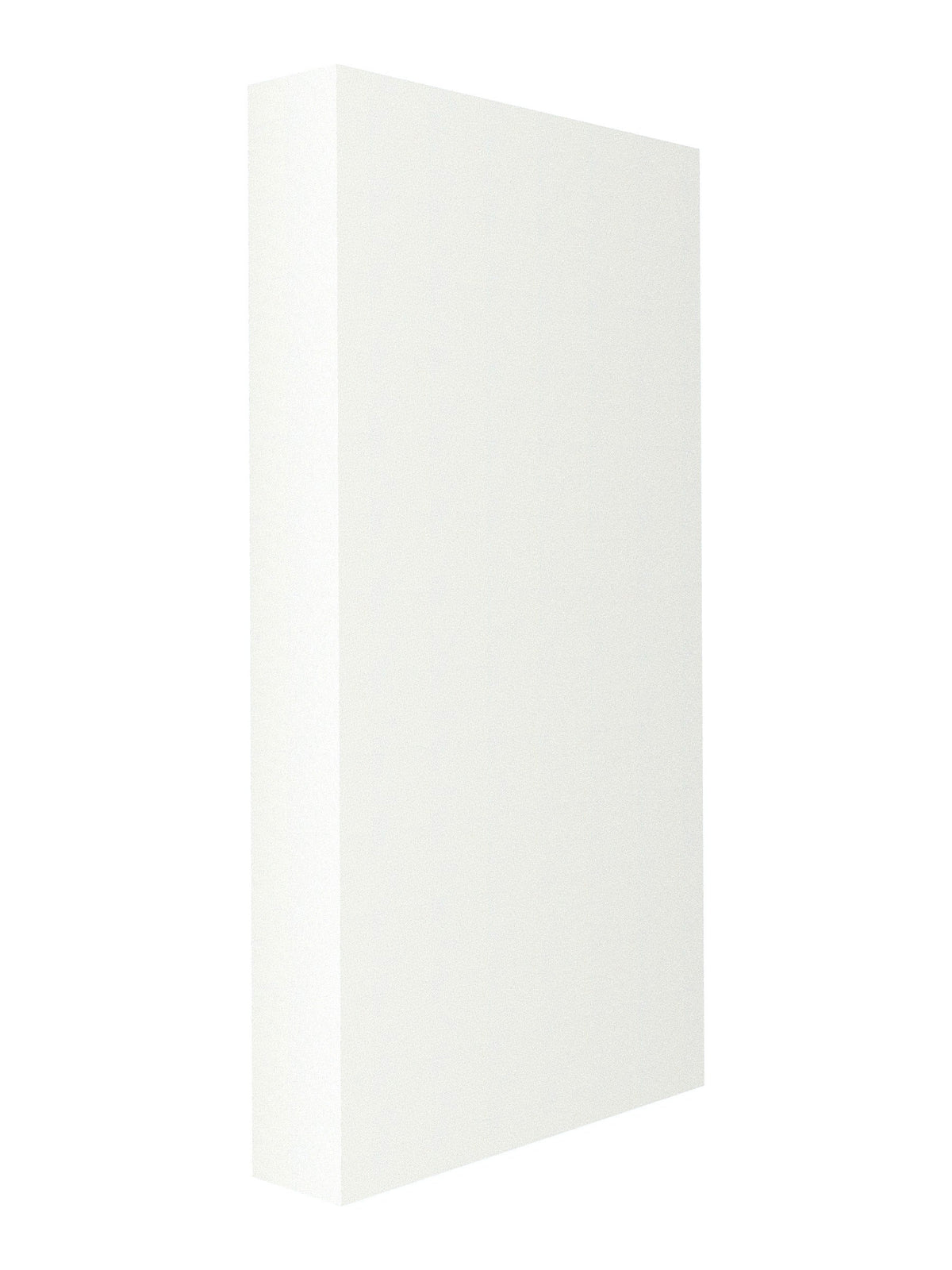

  • Broadband acoustic panel, 2 x 4 ft, Guilford of Maine Anchorage in White
  • Broadband acoustic panel, 2 x 4 ft, rear view: olive ripstop backing with cross members behind it
  • Wall mount Z-bar hardware kit: four 18 inch aluminum Z-bar cleats, drywall anchors, screws and wood screws for studs
Broadband Acoustic Panel

Broadband Acoustic Panel

$229.00
Size
Color: White
Mounting

Our Broadband panels have a 4" core and absorb from 125 Hz up, through the low mids, mids and highs.

Each panel is built with a plywood frame and 4" of 6 PCF rigid mineral wool insulation, a dense core rated 0.60 at 125 Hz, 0.88 at 250 Hz and 0.91 or better from 500 Hz up. Finished in your choice of 50 acoustically transparent colors in Guilford of Maine Anchorage 2335, and fitted with an aluminum Z-bar cleat wall mount kit. Floor legs, with or without locking casters, are also available on this page for free-standing use.

Absorption Coefficients

6 PCF rigid mineral wool, 4" core. Conservative figures: the lowest value in each band from published ASTM C423 data for 6 PCF rigid mineral wool board (ROCKWOOL ROCKBOARD 60 and Owens Corning 705). Values above 1.00 are shown as 1.00.

  • 125 Hz: 0.60 · 250 Hz: 0.88 · 500 Hz: 1.00
  • 1000 Hz: 1.00 · 2000 Hz: 1.00 · 4000 Hz: 0.91
  • NRC: 0.95

Sizes and Weights

  • 2 x 4': 23.75" × 46.75" × 4.75", approx. 23 lbs
  • 2 x 6': 23.75" × 71.75" × 4.75", approx. 37 lbs
  • 2 x 7': 23.75" × 83.75" × 4.75", approx. 44 lbs
  • 2 x 8': 23.75" × 95.75" × 4.75", approx. 49 lbs
  • 3 x 6': 35.75" × 71.75" × 4.75", approx. 53 lbs
  • 3 x 7': 35.75" × 83.75" × 4.75", approx. 61 lbs
  • 3 x 8': 35.75" × 95.75" × 4.75", approx. 69 lbs
  • 4 x 6': 47.75" × 71.75" × 4.75", approx. 68 lbs
  • 4 x 7': 47.75" × 83.75" × 4.75", approx. 78 lbs
  • 4 x 8': 47.75" × 95.75" × 4.75", approx. 88 lbs

Materials and Specs

  • Core: 6 PCF rigid mineral wool, 4"
  • NRC: 0.95
  • Frame: Plywood
  • Depth: 4.75"
  • Fabric: Guilford of Maine Anchorage 2335, in 50 acoustically transparent colors
  • Mounting: Aluminum Z-bar cleat wall mount kit included. Optional floor legs, with or without locking casters

Ordering and Shipping

Built to order. Shipping is calculated at checkout: small orders of 2 x 4' panels ship by UPS Ground, and larger orders and sizes ship by freight. Very large orders get a freight quote, which we'll email you for approval before we start your build. Local pickup and local delivery with installation are also available.

Available in 50 Fabric Colors

Every panel is wrapped in Guilford of Maine Anchorage 2335, in any of 50 colors.
