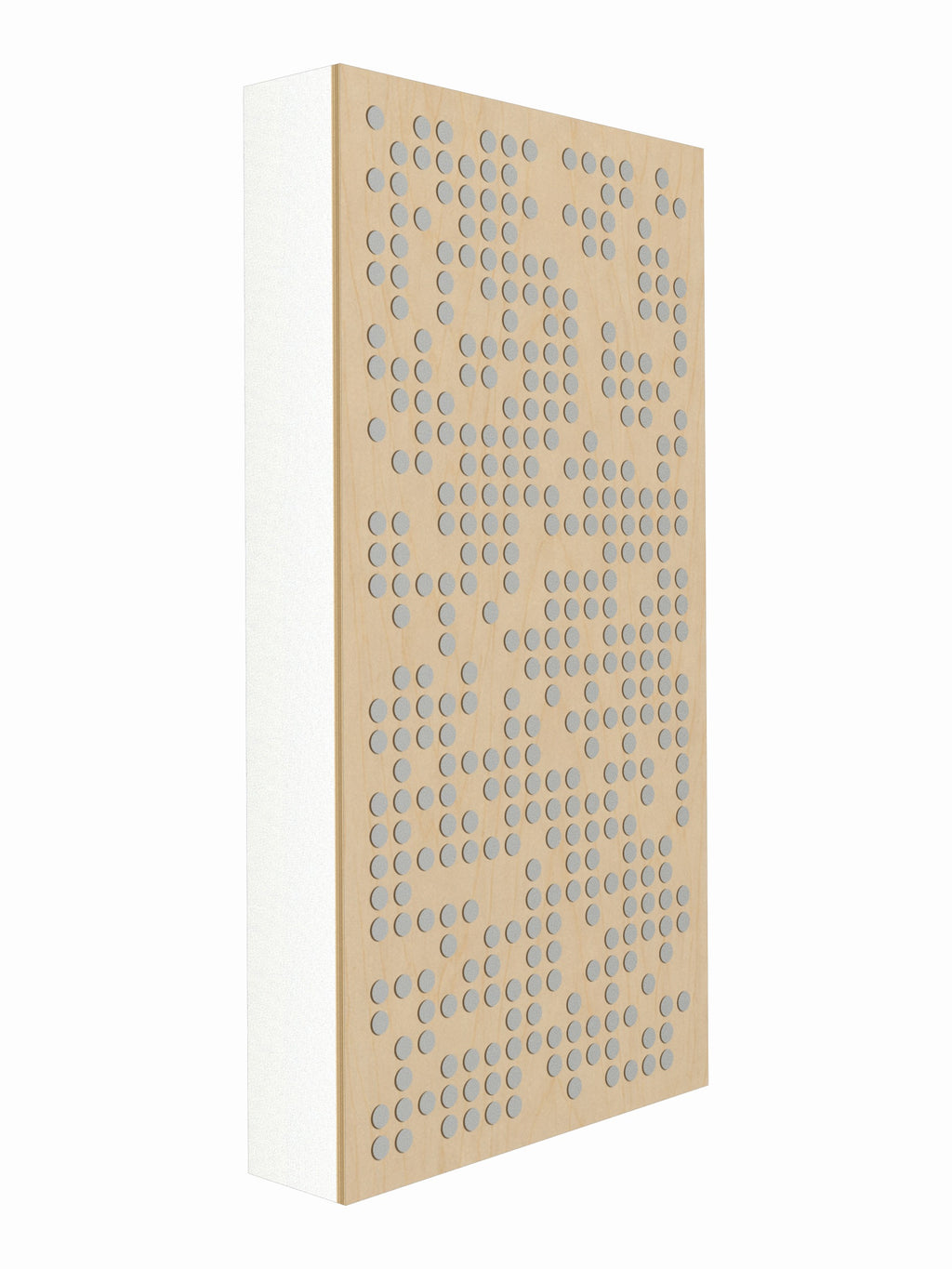

Pulse Scatter Face Broadband Acoustic Panel - Air

This is the Pulse Air panel with the 4" core: 1" holes, about 28% open, in a 3/8" prefinished birch face with the holes spread across the whole face in an irregular pattern. At 5-1/8" deep, the 4" core absorbs further down than the 2" Mid / High version, so choose it when the room also has low-mid buildup. Air has the largest holes of the three, absorbs the most and shows the most fabric color.

Low and mid frequencies pass through the holes into the core, and the solid wood between them reflects part of the highs back into the room, so it stays lively.

The fabric color shows clearly through the face. It is also available with a 2" core as a Pulse Scatter Face Mid / High panel, and with a waveform hole pattern as a Transient Scatter Face panel. Finished in your choice of 50 acoustically transparent colors in Guilford of Maine Anchorage 2335, and fitted with an aluminum Z-bar cleat wall mount kit.

Hole Size and Pattern

• Air: 1" holes, about 28% open. Absorbs the most of the three. For control rooms.
• Pattern: Holes spread over the whole face in an irregular pattern on a 1.30" grid.
• Also Available: Bright and Live, the same pattern with smaller holes

Sizes and Weights

• 2 x 4': 23.25" × 46.75" × 5.125", approx. 37 lbs
• 2 x 6': 23.25" × 71.75" × 5.125", approx. 54 lbs
• 2 x 7': 23.25" × 83.75" × 5.125", approx. 63 lbs
• 3 x 6': 35.75" × 71.75" × 5.125", approx. 77 lbs
• 3 x 7': 35.75" × 83.75" × 5.125", approx. 90 lbs

Materials and Specs

• Face: 3/8" prefinished birch plywood, CNC cut
• Behind the Face: The panel's own acoustic fabric, in the color you choose
• Core: 6 PCF rigid mineral wool, 4"
• Frame: Plywood
• Depth: 5.125"
• Fabric: Guilford of Maine Anchorage 2335, in 50 acoustically transparent colors, on the sides and behind the face
• Mounting: Aluminum Z-bar cleat wall mount kit included

Ordering and Shipping

Built to order. Shipping is calculated at checkout, by parcel or freight depending on the order. Very large orders get a freight quote, which we'll email you for approval before we start your build. Local pickup and local delivery with installation are also available.
