Wood Framed Broadband Acoustic Panel - Painted Pine

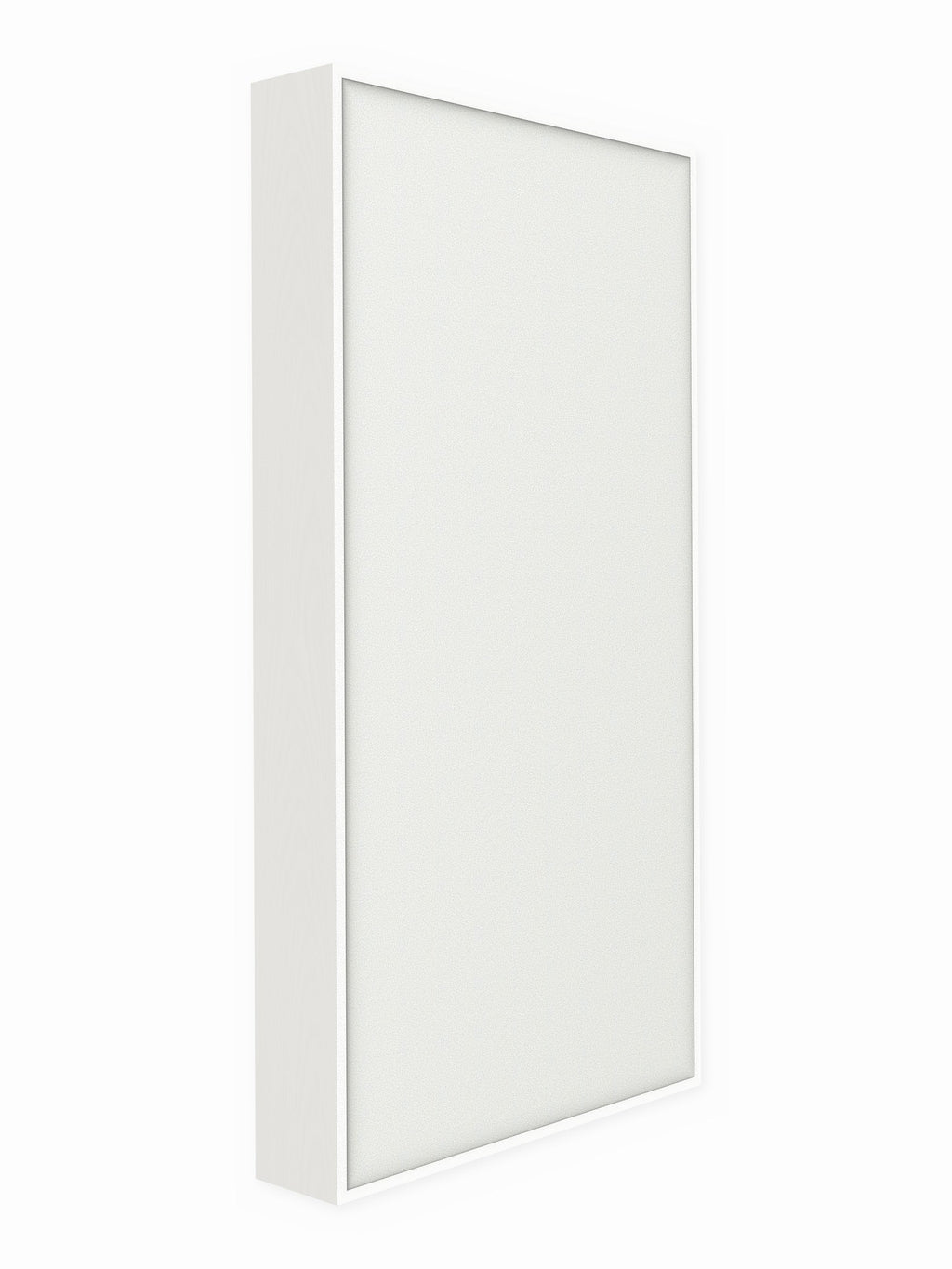

Our wood framed panels absorb from 125 Hz up with the same 4" mineral wool core as our broadband panels, set in a painted pine frame and finished with fabric track on the room face. Use them where the frame is meant to be seen.

This is a single-sided panel. The fabric track finishes the front face with no exposed staples, and the fabric is replaceable, so a color change later is a re-tuck rather than a rebuild. The back is finished like our standard broadband panels: a ripstop fabric backer is installed to the inside of the frame, so the frame and cross members are exposed on the back. It faces the wall and is not meant to be seen. If you need a panel finished on both sides, see our Wood Frame Free Standing Gobo Panel.

Paint Color

Choose from ten Sherwin-Williams colors, all the same price. Choose a satin or velvet sheen; both are the same price.

• Pure White (SW 7005)
• Creamy (SW 7012)
• Agreeable Gray (SW 7029)
• Accessible Beige (SW 7036)
• Sea Salt (SW 6204)
• Repose Gray (SW 7015)
• Mindful Gray (SW 7016)
• Kilim Beige (SW 6106)
• Iron Ore (SW 7069)
• Tricorn Black (SW 6258)

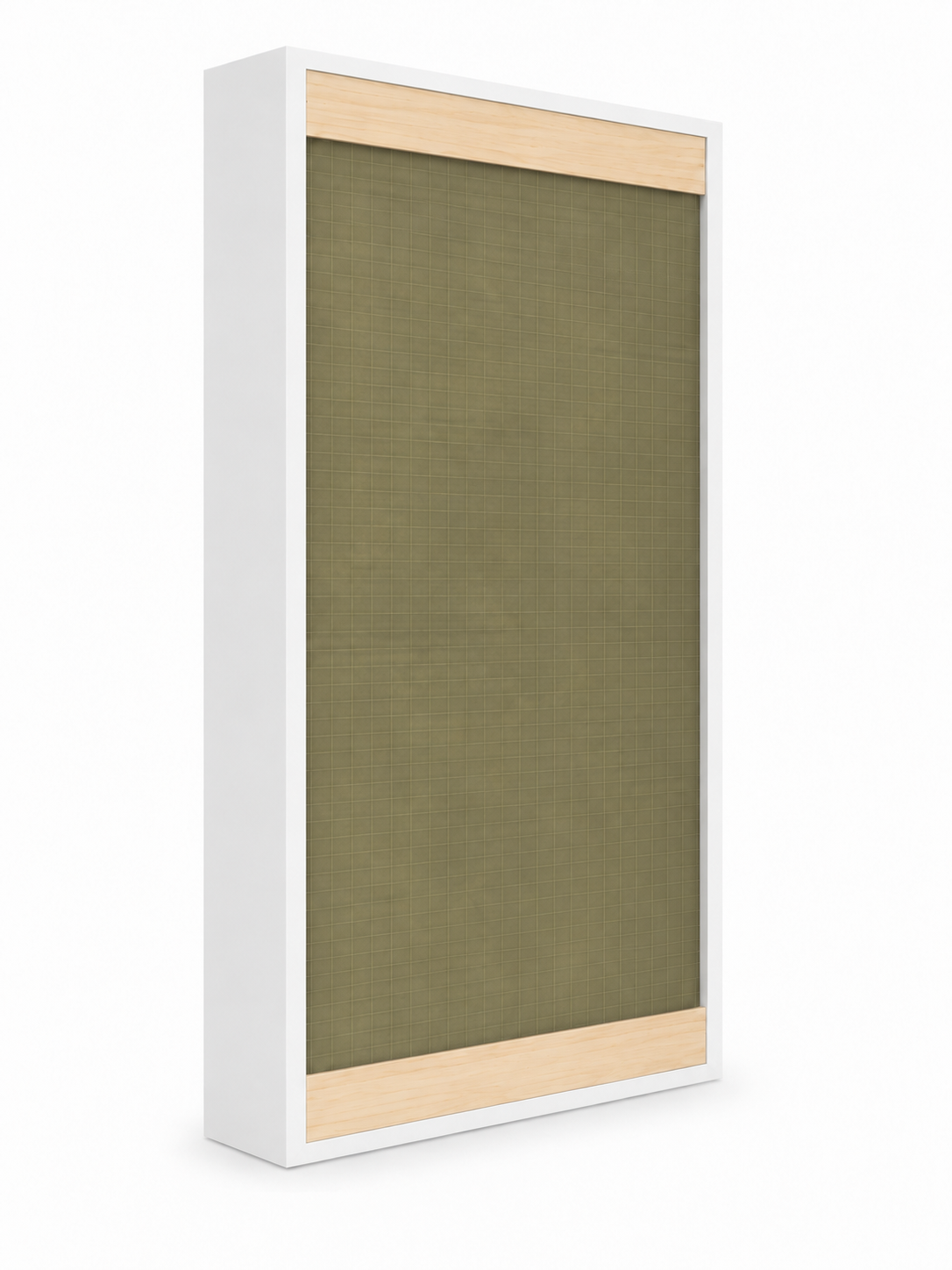

Triangular plywood corner braces and raw pine plywood cross members on the back keep the frame rigid and square: top and bottom on the 2 x 4', four on the 6' and taller sizes.

Finished in your choice of 50 acoustically transparent colors in Guilford of Maine Anchorage 2335. Choose the aluminum Z-bar cleat wall mount kit or, on 6' and taller sizes, floor legs or floor legs with locking casters.

Absorption Coefficients

6 PCF rigid mineral wool, 4" core. Conservative figures: the lowest value in each band from published ASTM C423 data for 6 PCF rigid mineral wool board (ROCKWOOL ROCKBOARD 60 and Owens Corning 705). Values above 1.00 are shown as 1.00.

• 125 Hz: 0.60 · 250 Hz: 0.88 · 500 Hz: 1.00
• 1000 Hz: 1.00 · 2000 Hz: 1.00 · 4000 Hz: 0.91
• NRC: 0.95

Sizes and Weights

• 2 x 4': 23.75" × 47.75" × 5.5", 8 sq ft, approx. 28 lbs
• 2 x 6': 23.75" × 71.75" × 5.5", 12 sq ft, approx. 41 lbs
• 3 x 6': 35.75" × 71.75" × 5.5", 18 sq ft, approx. 57 lbs
• 3 x 7': 35.75" × 83.75" × 5.5", 21 sq ft, approx. 65 lbs
• 3 x 8': 35.75" × 95.75" × 5.5", 24 sq ft, approx. 72 lbs
• 4 x 8': 47.75" × 95.75" × 5.5", 32 sq ft, approx. 92 lbs

Materials and Specs

• Core: 6 PCF rigid mineral wool, 4"
• NRC: 0.95
• Frame: Painted pine
• Finish: Sherwin-Williams paint, ten colors; satin or velvet sheen
• Depth: 5.5"
• Front Face: Fabric track, no exposed staples
• Back: Ripstop fabric backer inside the frame, frame and cross members exposed (same as our standard broadband panels)
• Fabric: Guilford of Maine Anchorage 2335, in 50 acoustically transparent colors
• Mounting: Aluminum Z-bar cleat wall mount kit, or floor legs with or without locking casters (6' and taller)

Ordering and Shipping

Custom made. Ships by freight, with the rate calculated at checkout. Very large orders get a freight quote, which we'll email you for approval before we start your build. Local pickup and local delivery with installation are also available.
