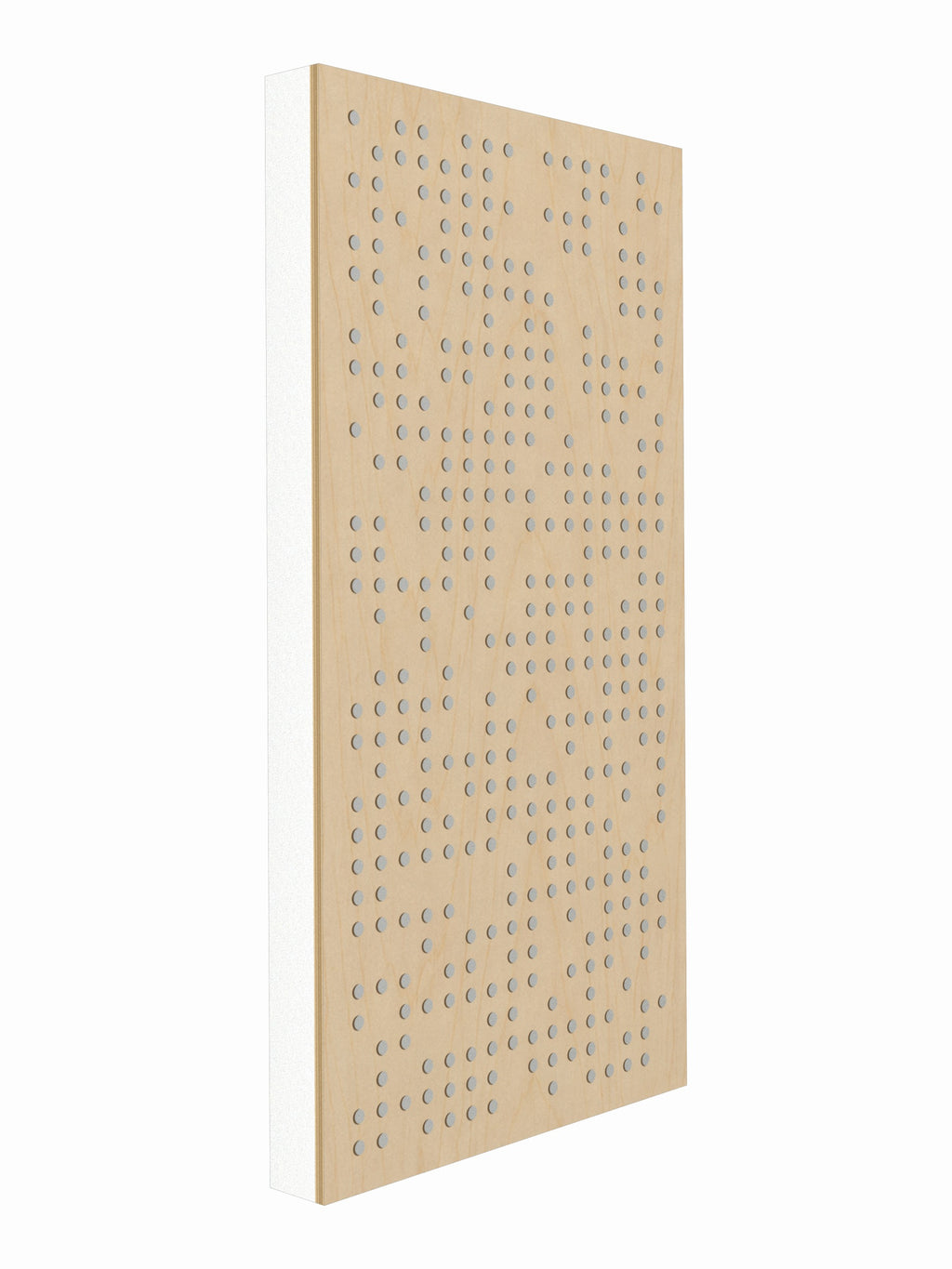

Pulse Scatter Face Mid / High Acoustic Panel - Live

This is the Pulse Live panel with the 2" core: 5/8" holes, about 11% open, in a 3/8" prefinished birch face with the holes spread across the whole face in an irregular pattern. At 3-1/8" deep, the 2" core is the slim version, for vocal booths, offices and rooms that already have bass control. Live has the smallest holes of the three, reflects the most and leaves the most wood showing.

Low and mid frequencies pass through the holes into the core, and the solid wood between them reflects part of the highs back into the room, so it stays lively.

The fabric color shows through as small dots of color. It is also available with a 4" core as a Pulse Scatter Face Broadband panel, and with a waveform hole pattern as a Transient Scatter Face panel. Finished in your choice of 50 acoustically transparent colors in Guilford of Maine Anchorage 2335, and fitted with an aluminum Z-bar cleat wall mount kit.

Hole Size and Pattern

• Live: 5/8" holes, about 11% open. Reflects the most of the three. For tracking and live rooms.
• Pattern: Holes spread over the whole face in an irregular pattern on a 1.30" grid.
• Also Available: Air and Bright, the same pattern with larger holes

Sizes and Weights

• 2 x 4': 23.25" × 46.75" × 3.125", approx. 23 lbs
• 2 x 6': 23.25" × 71.75" × 3.125", approx. 38 lbs
• 2 x 7': 23.25" × 83.75" × 3.125", approx. 44 lbs
• 3 x 6': 35.75" × 71.75" × 3.125", approx. 55 lbs
• 3 x 7': 35.75" × 83.75" × 3.125", approx. 64 lbs

Materials and Specs

• Face: 3/8" prefinished birch plywood, CNC cut
• Behind the Face: The panel's own acoustic fabric, in the color you choose
• Core: 6 PCF rigid mineral wool, 2"
• Frame: Plywood
• Depth: 3.125"
• Fabric: Guilford of Maine Anchorage 2335, in 50 acoustically transparent colors, on the sides and behind the face
• Mounting: Aluminum Z-bar cleat wall mount kit included

Ordering and Shipping

Built to order. Shipping is calculated at checkout, by parcel or freight depending on the order. Very large orders get a freight quote, which we'll email you for approval before we start your build. Local pickup and local delivery with installation are also available.
