Diaphragm Absorbers vs. Membrane Bass Traps: Which Fixes Your Low End?

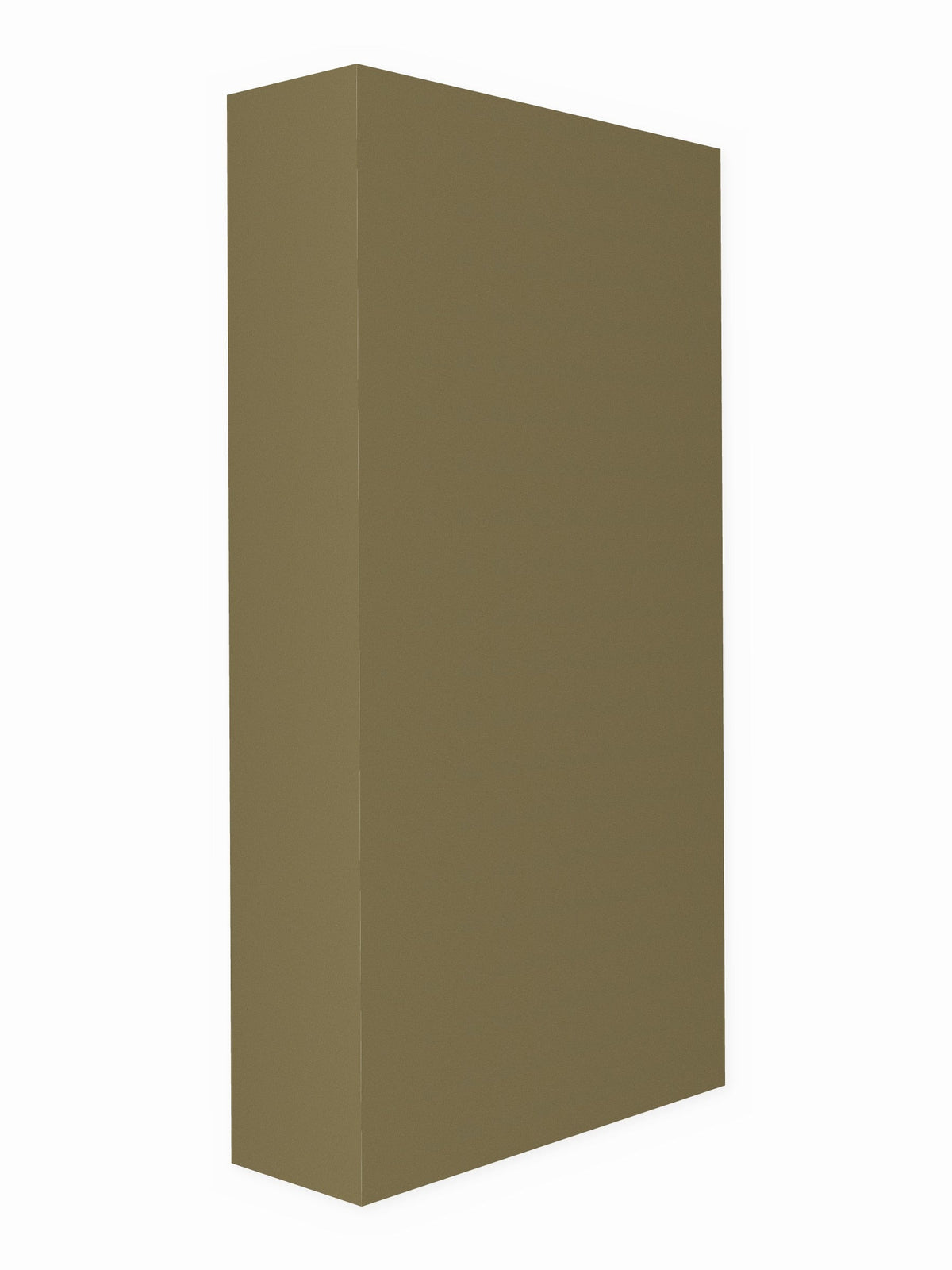

9 inch deep Diaphragm Bass Trap covered in acoustic fabric

Two kinds of low frequency absorber are easy to confuse: the diaphragm absorber and the tuned membrane bass trap. Both use a panel that moves with the sound, but they are built for different jobs. A diaphragm absorber is built for broad low end control. A membrane trap is aimed at one narrow band. A room measurement tells you which one your room needs.

Why Small Rooms Have Bass Problems

Low frequencies have wavelengths many feet long, comparable to the dimensions of a room. At certain frequencies, set by the length, width and height, sound reflecting between two parallel surfaces reinforces itself. Those are room modes. At the listening position, a mode can make one note boom and ring on after it should have stopped, while a nearby note almost disappears.

The simplest modes, between one pair of parallel surfaces, fall at f = n × c / (2L), where c is the speed of sound (about 1,125 feet per second), L is the distance between the surfaces in feet and n is 1, 2, 3 and so on. In a 12 x 11 x 8 ft bedroom that gives:

  • Length, 12 ft: About 47 Hz and 94 Hz.
  • Width, 11 ft: About 51 Hz and 102 Hz.
  • Height, 8 ft: About 70 Hz and 141 Hz.

Porous panels, meaning fiberglass or mineral wool that absorbs sound by friction as air moves through the fibers, do little at these frequencies unless they are deep. On published data sheets for 6 PCF rigid board, a 2" core absorbs 0.18 of the sound that hits it at 125 Hz, and a 4" core absorbs 0.60. Those sheets stop at 125 Hz, above the lowest modes in this room.

A common rule of thumb is that porous material needs to be at least a tenth of a wavelength thick to be effective. At 60 Hz that is about 22-1/2", deeper than any wall panel. See porous vs. tuned bass traps for the physics.

Diaphragm Absorbers: Broad Low End Control

A diaphragm absorber is a deep, insulation-filled frame with a plywood diaphragm. The diaphragm extends absorption lower than the insulation reaches on its own.

The insulation packed behind it damps the diaphragm heavily, which spreads its absorption over a wide band instead of one sharp peak, and the absorber keeps working up through the mids and highs, so one unit covers a wide range.

Our 9" and 12" Diaphragm Bass Traps are predicted to work from about 80 Hz up on 2 ft wide traps and about 60 Hz up on 3 ft and wider.

Use Them When: The low end is generally heavy and slow to decay across a wide range. Corners and the rear wall are the usual spots.

Membrane Bass Traps: Aimed at a Narrow Band

A tuned membrane trap is a sealed box with a limp, heavy membrane across the front. The membrane is a mass and the sealed air behind it acts as a spring. Together they resonate at one frequency, and around that frequency the membrane moves and the energy is lost as heat.

Above and below that band, the trap does much less. It responds to sound pressure, which is highest at walls and in corners, so it works where porous fill is weakest.

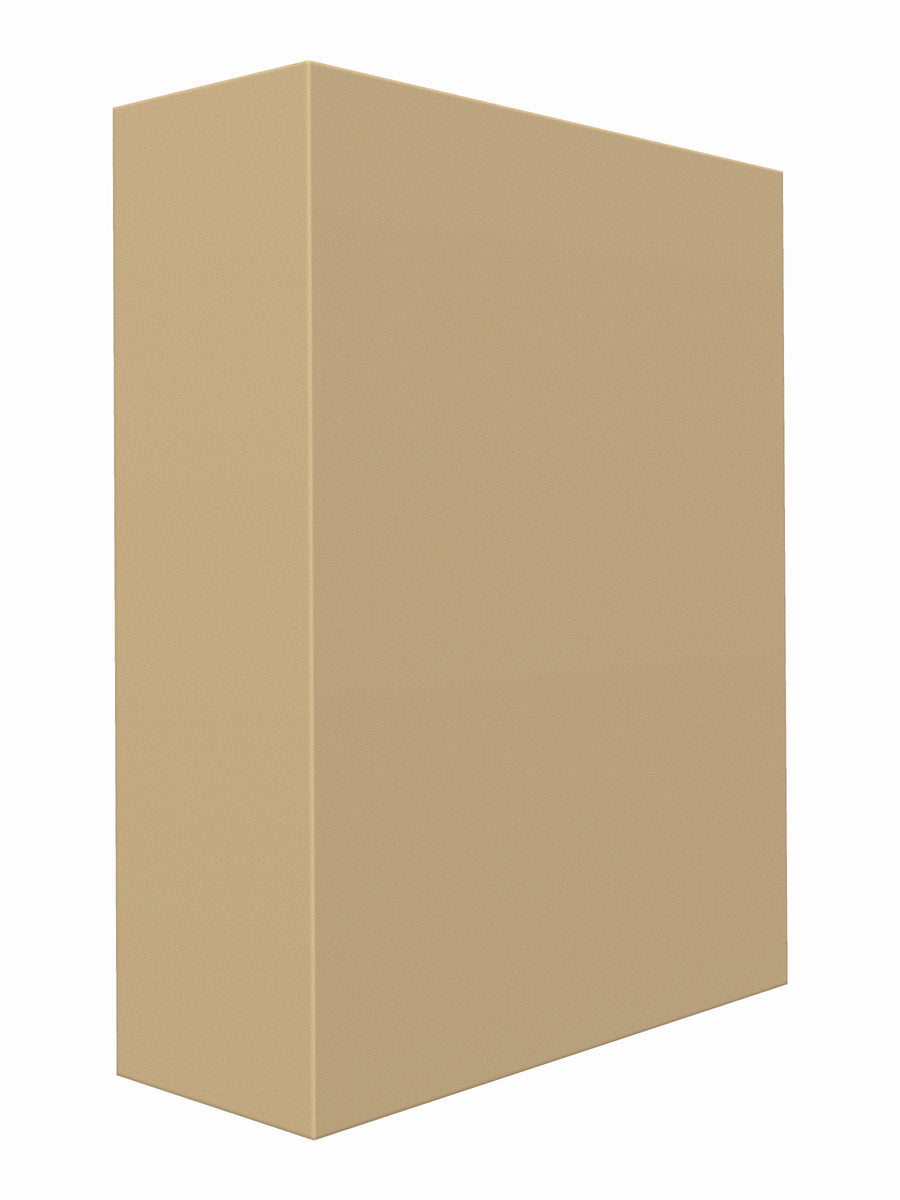

Tuned membrane bass trap, 3 x 4 ft, covered in acoustic fabric

The resonant frequency is approximately:

  • Metric: With m the membrane mass in kg per square meter and d the air space depth in meters, f = 60 / √(m × d).
  • US Units: With m in pounds per square foot and d in inches, f = 170 / √(m × d).

For example, a membrane weighing 1 lb per square foot (about 4.9 kg per square meter) over a 4" air space resonates at about 85 Hz:

  1. 170 ÷ √(1 × 4) = 170 ÷ 2 = 85.
  2. To halve the frequency you need four times the mass times the depth.
  3. The same membrane over a 16" air space comes out at 170 ÷ 4, about 43 Hz, which is why traps tuned to 40 or 50 Hz get heavy or deep.

These formulas treat the membrane as a pure mass over empty air. Panel stiffness, how the edges are fixed and insulation in the air space all shift the resonance, so a built trap is checked by measurement.

Ordinary walls do some of this already. A National Research Council of Canada digest notes that thin plywood and plasterboard "may have absorption coefficients as high as 0.50, due to panel resonances, at low frequencies."

A membrane trap is the right tool for one or two modes that a porous panel can't reach. Our Membrane Bass Trap comes in four tunings: 45, 60, 70 and 85 Hz. The tuning is set by the box, so it has to be chosen before the trap is built.

Use Them When: A measurement shows one or two specific frequencies ringing much longer than the rest.

Diaphragm Absorber vs. Membrane Bass Trap: Measure Before You Choose

A boomy room is easy to hear. Which frequency is booming is not, and a membrane trap tuned to the wrong frequency does little. A basic measurement goes like this:

  • Set Up: Put a measurement mic at ear height at the listening position, pointed at the ceiling, and load the mic's 90 degree calibration file. Play a sine sweep from free room measurement software through one speaker at a time, with the sub on if you use one.
  • Read the Response: Look for narrow peaks and deep dips below about 200 Hz.
  • Read the Decay: Look at the waterfall, a plot of how each frequency dies away over time, or the decay time by frequency. A peak that also rings much longer than its neighbors is a mode.
  • Match It to the Room: Compare those frequencies with the mode frequencies from your room dimensions.

One or two isolated ringing frequencies point to a membrane trap. A low end that is heavy and slow across a wide range points to diaphragm absorbers and deep porous traps. Plenty of rooms end up with both. Our guide to measuring your room walks through it.
